Application:
Static Balancing Valve is designed for flow balancing in cooling, heating or process water systems. Its shutoff feature can be instead the Globe valve. It also has the function of locking of maximum range. The function of locking will be opened after its system debugged. If the products need to be repaired, you can close the Static Balancing Valve, and then directly return to the maximum range. It can avoid the second text, save many time and cost. Its measuring joint enable convenient system troubleshooting. Static balancing valve be used in water supply or return water pipe.
Features:
Accurate flow control
Numerical indicator of opening rate on the handwheel
Opening of the lock set position
Shut-off function achieved by handwheel
Self-sealing measuring points to protect against leakage

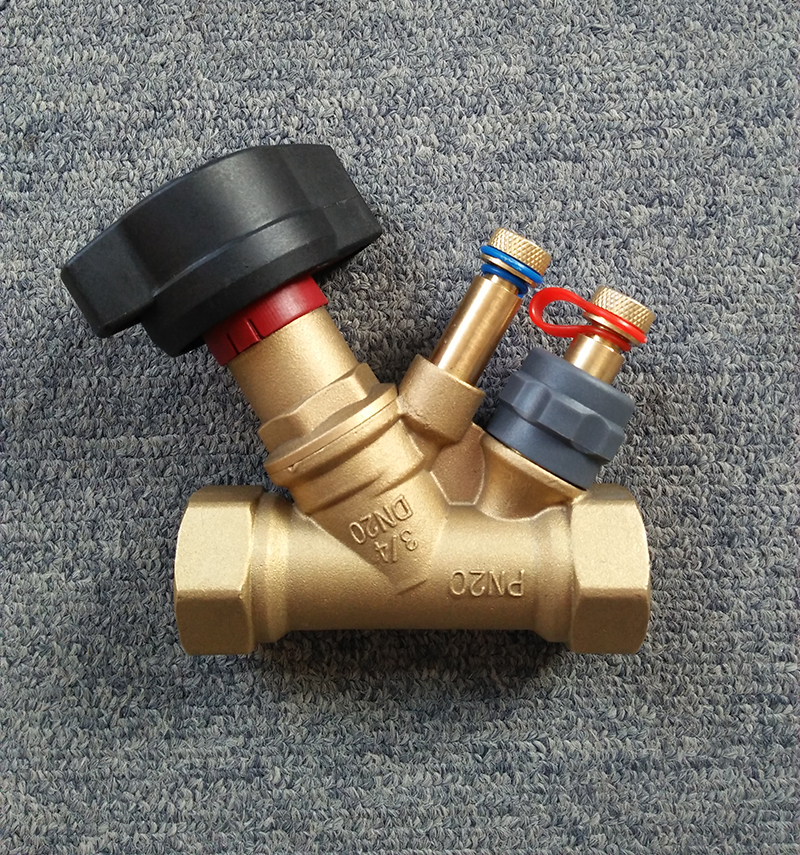

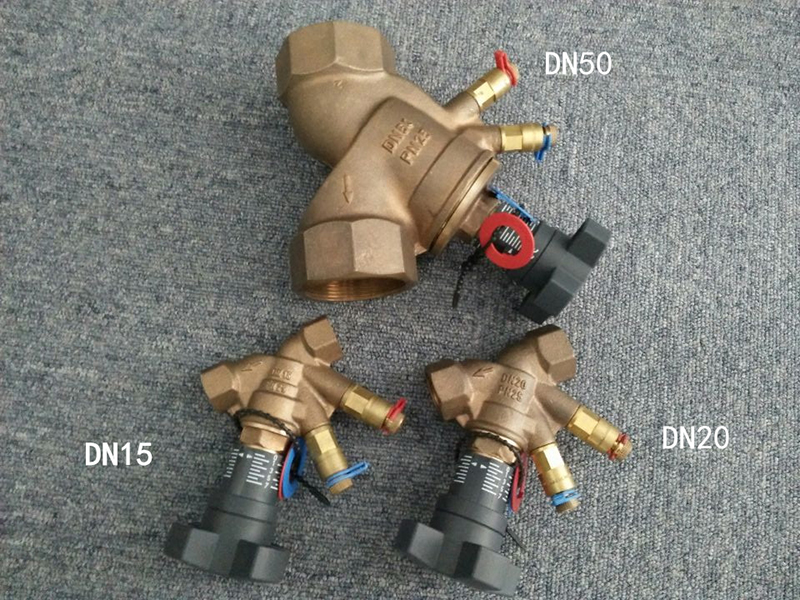

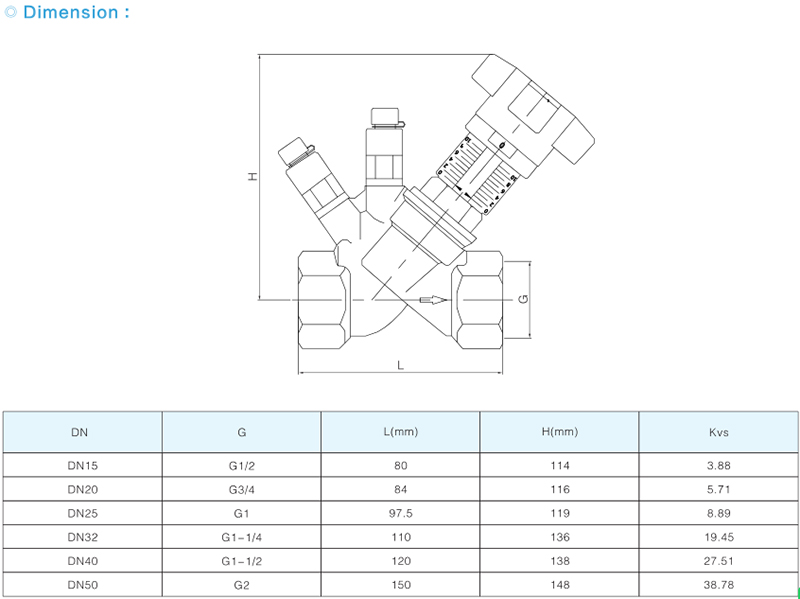

DN15 - DN50 Static Balancing Valve
Technical specification:
Working Pressure: PN25
Fluid Medium: Cold and Hot Water/Ethylene
Connection: Threaded Connection
Connection Standard: EN 10226 GB/T 7306.1-2000

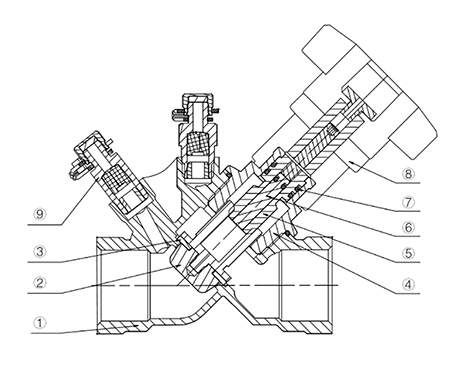

1. Body: Brass
2. Valve Core: Brass
3. Base Sealling: PTFE
4. Bonnet: Brass
5. Stem: Brass
6. Core Rod: DZR Brass CW602N
7. Hand Wheel: EPDM
8. Seallinig: Plastic ABS
9. Measuring Points: Brass
Fluid Medium: Cold and Hot Water/Ethylene

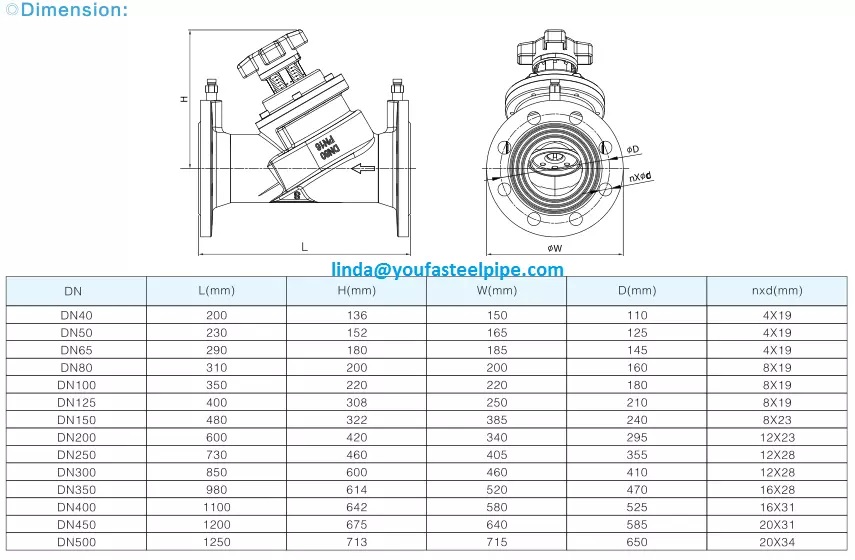

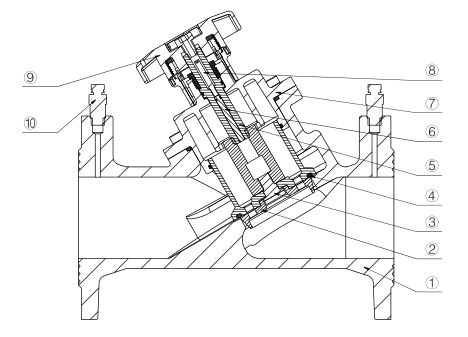

Materials:
1. Body: Ductile iron
2. Valve Core: Ductile iron/stainless Steel/ Brass
3. Screw: stainless Steel
4. Sealling: PTFE / EPDM
5. Stem: Brass / stainless steel
6. Core Rod: Brass/ stainless steel
7. Bonnet: Ductile Iron
8. Lock Screw: Stainless Steel
9. Handwheel: Nylon DN40 - DN250
Die-Cast Aluminum DN300 - DN500
10. Measuring Points: Brass

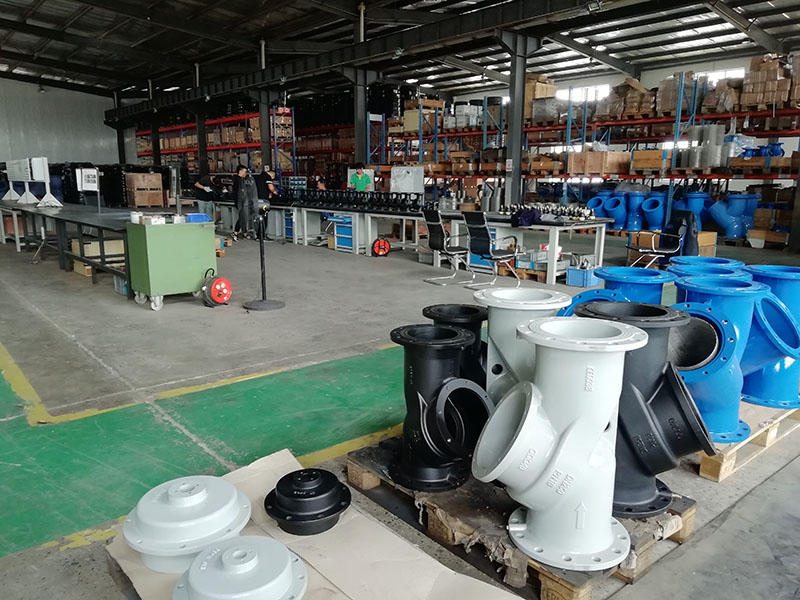

Factory Address in Tianjin city, China.
widely used in domestic and foreign nuclear power, oil & gas, chemical, steel, power plant, natural gas, water treatment and other fields.

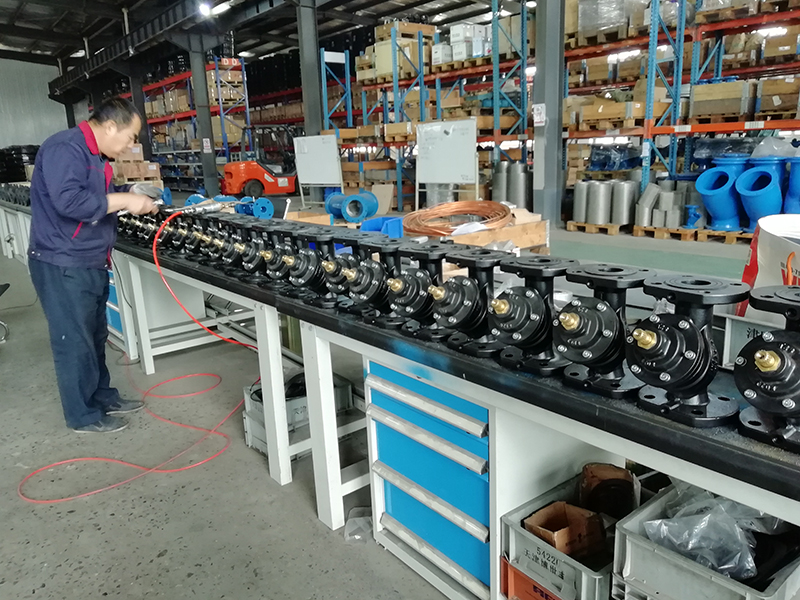

Perfect quality assurance system and a full set of quality inspection measurements: physical inspection lab and direct reading spectrometer, mechanical properties test, impact test, digital radiography, ultrasonic testing, magnetic particle testing, osmotic testing, low temperature test, 3D detection, low leakage test, life test, etc., by the ways of implementation of quality control plan, ensure that the products meet customers` requirements.
Company is committed to serving the different countries and regions` owner to create win-win results.
