Frame scaffolding system

Short Description:


  • MOQ Per Size: 2 tons
  • Min. Order Quantity: One container
  • Production Time: usually 25 days
  • Delivery Port: Xingang Tianjin Port in China
  • Payment Terms: L/C,D/A,D/P,T/T
  • Brand: YOUFA
  • Material: Q235 steel
  • Surface Treatment: hot dip galvanized or powder coated
  • Included: Cross Brace, Joint Pin, Jack Base and Scaffolding Frame
  • Scaffolding Frame Normal Size: 1.2 x 1.7 m
  • Cross Brace : 2 sets
  • Jack Base: 4 pcs for 1 scaffold
  • Outer Tube Normal Size: diameter 42 mm,wall thickness 2 mm or customized by customer
  • Inner Tube Normal Size: diameter 25 mm,wall thickness 1.5 mm or customized by customer
  • Product Detail

    Product Tags

    Frame scaffolding system
    The material is generally used Q235 steel,the surface treatment is hot dip galvanized or powder coated.

    Frame scaffolding system is a type of temporary structure used to support workers and materials during construction, maintenance, and repair of buildings and other structures. It consists of vertical and horizontal frames, cross braces, platforms, and other components that are assembled to create a stable and secure working platform at elevated heights.

    The frame scaffolding system typically includes components such as walk-through frames, cross braces, jack bases, and other accessories to provide safe access and support for workers. It is designed to be versatile, easy to assemble, and adaptable to various construction and maintenance tasks.

    Scaffolding Frame 2 pcs Frame , size 1.2 x 1.7 m or as your request
    Cross Brace 2sets of Cross Brace
    Joint Pin Joint the two sets scaffolding frame together
    Jack Base Put to the most bottom and top stair of scaffolds foot
    4 pcs for 1 scaffold

    Normal sizes on project

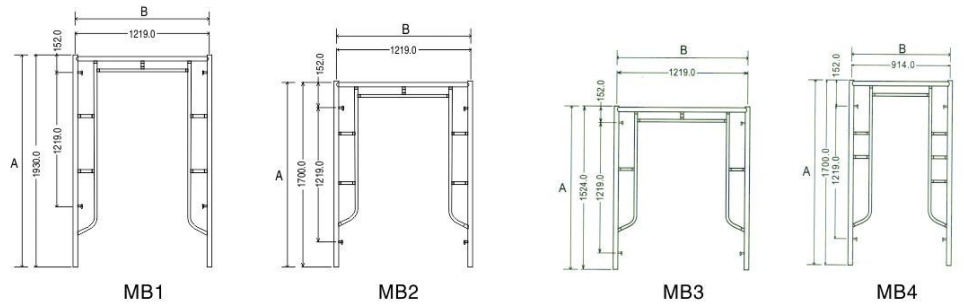

    1.Walk through frame/H frame

    Walk through H frame



     Size B*A(48*67)1219*1930MM B*A(48*76)1219*1700 MM B*A(4*5)1219*1524 MM B*A(3*57)914*1700 MM
    Φ42*2.4 16.21KG 14.58KG 13.20KG 12.84KG
    Φ42*2.2 15.28KG 13.73KG 12.43KG 12.04KG
    Φ42*2.0 14.33KG 12.88KG 11.64KG 11.24KG
    Φ42*1.8 13.38KG 13.38KG 10.84KG 10.43KG

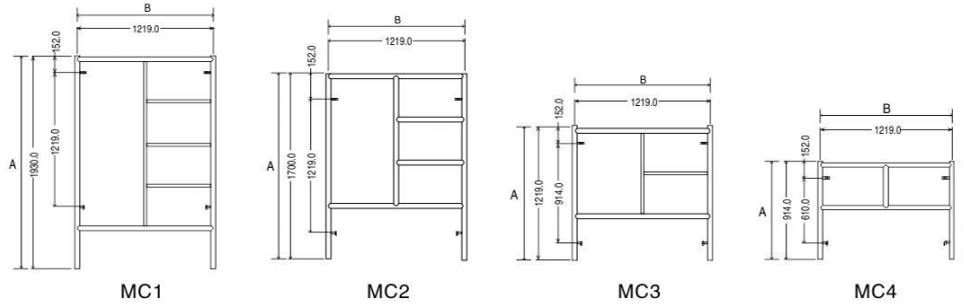

     2.Mason frame

    Mason frame

     Size A*B1219*1930MM A*B1219*1700 MM A*B1219*1524 MM A*B1219*914 MM
    Φ42*2.2 14.65KG 14.65KG 11.72KG 8.00KG
    Φ42*2.0 13.57KG 13.57KG 10.82KG 7.44KG

    3.Cross brace

    Cross brace



    The specification is diameter 22 mm,the wall thickness is 0.8mm/1mm,or customized by customer.





                                  AB 1219MM 914 MM 610 MM
    1829MM 3.3KG 3.06KG 2.89KG
    1524MM 2.92KG 2.67KG 2.47KG
    1219MM 2.59KG 2.3KG 2.06KG

    4.Ladder frame

    Ladder frame sizes

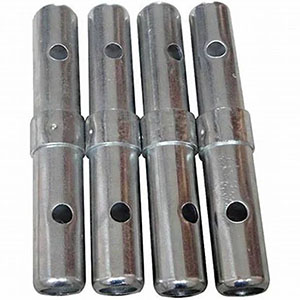

    5.Joint pin

    Joint pin Connect Scaffold Frames with the Scaffold Coupling Pin



















    6.Jack base

    Scaffolding jack baseAdjustable screw jack base can be used in engineering construction, bridge construction, and used with all kinds of scaffold, play the role of top and bottom support.    The surface treatment :hot dip galvanized or electro galvanized .                                                                                                                               Head base is usually U type,the base plate is usually square or customized by customer.

    The specification of jack base is:

    Type Diameter/mm Height/mm U based plate Base plate
    solid 32 300 120*100*45*4.0 120*120*4.0
    solid 32 400 150*120*50*4.5 140*140*4.5
    solid 32 500 150*150*50*6.0 150*150*4.5
    hollow 38*4 600 120*120*30*3.0 150*150*5.0
    hollow 40*3.5 700 150*150*50*6.0 150*200*5.5
    hollow 48*5.0 810 150*150*50*6.0 200*200*6.0

    7.Fittings

    Forged jack nut















    Forged jack nut                                                   Ductile iron Jack nut

    Diameter:35/38MM                                          Diameter:35/38MM

    WT:0.8kg                                                              WT:0.8kg

    Surface: Zinc electroplated                               Surface: Zinc electroplated
